Grainfather Conical Fermenter
KIT - Grainfather Conical Fermenter Pro Edition
Grainfather Conical Fermenter - Basic Unit
Grainfather Conical Fermenter Dual Valve
Grainfather Conical Fermenter Digital Temperature Controller
Ferment like never before! The Grainfather Conical Fermenter give the brewer professional fermentation control, just like the commercial breweries. Fermentation is arguably the most important part of producing a good quality beer. A good fermentation environment starts with a clean and sterile fermenter, has a consistent controlled temperature base and exposure to oxygen is minimised.
The Grainfather Conical Fermenter provides you with a modular system for all of this and more!
The Grainfather Conical Fermenter Pro Edition includes the basic unit plus the Dual Valve Tap and Temperature Controller. Allowing you to control the heating of your unit (and cooling with the Glycol Chiller available separately), dump yeast, take samples and transfer your wort via our innovative dual function valve design.
• Double Walled: A stainless steel double walled skin is filled with a thick layer of polyurethane foam for insulation. This is what keeps the wort at a constant stable temperature with minimal influence from any external environmental temperature changes, providing insulation for your fermentation that a standard jacket cannot achieve.
• Integrated Gentle Heating: In the cavity of the fermenter between the outer body and cone sits a 30 Watt, 12V heating element. Unlike standard heating elements/sources that directly heat the liquid, this heat source is designed to heat the environment in between the walls of the fermenter, which in turn heats the liquid. It is similar to controlling the temperature in a temperature controlled room. The fermenter acts as an artificial environment which can be heated, meaning the temperature is raised in an even and controlled manner which is much better for the yeast.
• Integrated Cooling Sleeve: In between the two stainless steel walls sits a cooling sleeve (also made of stainless steel). This cooling sleeve is welded onto the inner wall of the fermenter and can be hooked up to the additionally purchased Glycol Chiller. Temperature is dialed into the Temperature Controller and as the cooling liquid travels through this sleeve, it cools the stainless steel which in turn evenly cools the beer in the fermenter. The cooling sleeve never comes into contact with the beer, it is completely concealed, built into the fermenter and never needs cleaning or sanitising - a true innovation for a fermenter of this scale.
Easy Access to the Interior for Hassle Free Cleaning: The Grainfather Conical Fermenter has a smooth interior with no additions such as cooling coils or additional sampling valves meaning it is easy to clean and minimises the risk of infection.
Golden Angle Conical: The conical shape of the fermenter is typical for professional breweries. Our conical has been designed with the 'Golden Angle' of 60º. This is the optimum angle for yeast and sediment to drop down to the bottom of the cone without getting stuck to the sides, allowing you to transfer from above the sediment line, resulting in clearer beer. The conical shape also allows for better mixing during fermentation due to the path of convention currents that it enables to occur.
Dual Valve Tap: Make the yeast dumping, transferring and sampling process more professional with this innovative all in one valve. Sampling and transferring is done through an inlet above the sediment line, allowing for clear, sediment free beer. Easily collect your yeast from below the sediment line with the same unique valve for recultivating and pitching. The innovative design of the valve allows for this dual functionality and less cleaning for you.
Temperature Control: The Temperature Controller easily snaps on and replaces the standard Temperature Display via magnets and pogo pins. Allowing you to accurately dial in a temperature and even set a temperature schedule/profile (you can set up to 4 profiles each with 5 stages). It can control the heating of the integrated heating element and the cooling (if you have upgrade to the Glycol Chiller).
• Conical Fermenter
• Fermenter Lid
• Rubber Bung
• Bubbler Airlock
• Cone Plug
• Cone Plug Seal
• 5 cm (2") Tri Clamp
• Digital Temperature Display
• Powder Adapter and Wall Plug
• 2 m (6.5 ft) M12 3-Pin Power Cord
• Dual Valve Tap
• Digital Temperature Controller
• 304 Stainless Steel Body (polished inner and brushed outer)
• 30 L (8 US Gal) capacity (volume markings on inner body up to 25 L (7 US Gal)
• 20 - 30W, 12V heating power
• 3.8 cm (1.5") ferrule on lid (for pressure transfer attachments)
• 5 cm (2") ferrule on bottom of cone
• Dual Valve Tap with 110 mm (4.3”) inlet
• Dimensions of Conical Fermenter:
Diameter with handles: 360 mm
Height (without airlock): 910 mm
Height with bubbler airlock: 1090 mm
• Dimensions of Carton
368 mm W x 325 mm L x 905 mm H
Grainfather Conical Fermenter
Cooling Pump Kit

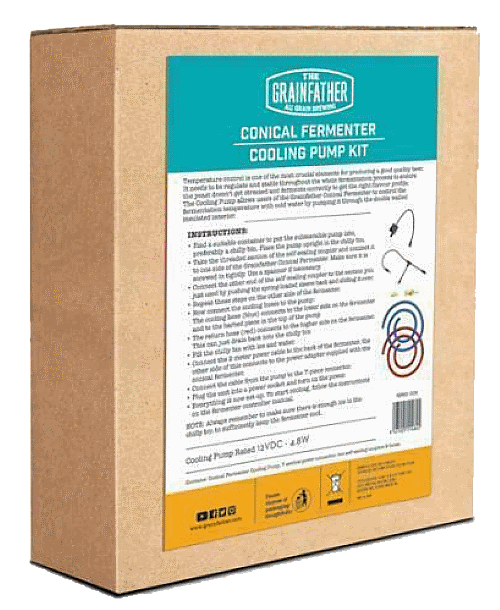

Grainfather Conical Fermenter Cooling Pump Kit
The Cooling Pump Kit allows users of the Grainfather Conical Fermenter to control the fermentation temperature with cold water by pumping it through the double walled insulated interior.
Temperature control is one of the most crucial elements for producing a good quality beer. It needs to be regulated and stable throughout the whole fermentation process to ensure the yeast doesn't get stressed and ferments correctly to get the right flavour profile.
To be able to cool with the Grainfather Conical Fermenter, you need to have the Conical Fermenter Temperature Controller. Then once your target temperature is below the temperature of the wort in your fermenter the Cooling Pump Kit pumps ice cold water through the double walled insulated interior to cool down your wort.
Simply connect the couplers and insulated hoses to the Conical Fermenter, submerge the submersible pump into a cooler box with water (add ice for your required temperature) and pump the liquid through the insulated cooling sleeve of the Conical Fermenter body.
What is Included
· Conical Fermenter Cooling Pump (submersible)
· T-section power connector
· 2 x self-sealing couplers and insulated hoses
Rated 12 VDC – 4.8 Watts
How to Use It
· Find a suitable container to put the submersible pump into, preferably a cooler box. Place the pump upright in the cooler box.
· Connect the insulated hoses to either side of the fermenter by attaching it to the self-sealing couplers.
· Fill the chilly bin with ice and water. Tip why not freeze some plastic soft drink bottles to put in the water.
· Plug it in and turn it on..
Everything is now set-up. To start cooling, follow the instructions on the fermenter controller manual.
