EZ Filter System
A cartridge carbon filter. Fast, clean and easy to use. Specifically designed for the maximum purification of alcohol or water.The EZ Filter is the latest development in alcohol filtration. It uses a specially formulated solid activated carbon cartridge to remove unwanted flavours from distilled alcohol.
Due to the compressed nature of the cartridges the alcohol is forced past a vast amount of active pores so filtration is assured. The Carbon Cartridges are best suited to quick filtration of alcohol from stills producing alcohol above 80% abv as well as spirit produced from triple Distilled Turbo from any still.
This filter combines the research done on the Still Spirits Turbo Yeasts with the latest development on carbon purifying of distilled alcohol.
The EZ Filter system uses the unique EZ Filter Carbon Cartridge, constructed from a specially formulated blend of carbons designed to deliver maximum performance.
The system kit contains upper 10L reservoir, filter unit, filter cartridge, lower 10L reservoir unit, outlet.
Air Still Carbon Filter & Collection System
Remove unwanted impurities from your home distilled spirits with the Still Spirits Air Still Carbon Filter and Collection System.
Air Still Carbon Filter & Collection System includes:
• 1 x Carbon Filter and Collection System
• 1 x 50 ml Still Spirits Top Shelf Distilling Conditioner
• 1 x 30 g Still Spirits Ceramic Boil Enhancers
Fuselex Ultimate Spirit Filter
Made of 304 Grade Stainless Steel and designed for the home brew industry. The filter only uses approximately 350 grams of Granulated Activated Carbon for 20L of spirit and due to its innovative design you get maximum carbon contact time which ensures removal of taint and smell from your beverage, including: chlorides from municipal water. Ideal to remove Fusel alcohol/oil from distilled liquor. Your not locked into buying a specific brand of carbon, nor do you need to worry about plastic parts being dissolved into your beverage. You can expect this filter to last a life time.
Please note: Spirit cannot be filtered properly at high percentage rates. 40% is recommended as you need to treat the finished product and not add any water after filtering. The filter has an upper chamber, treatment chamber and flow control chamber. The filter also comes with a mounting bracket so you can mount the unit to any wall - saves on that precious bench space!
Simple and easy to use
Mount the Fuselex Filter System to a suitable wall fixture at a suitable height with the mounting bracket
Pack the flow control chamber using filter media such as cheese cloth or filter wool. This will ensure no fine carbon dust is present in the finished product.
Connect the flow control chamber to the treatment chamber and pour the activated carbon into the treatment chamber.
Attach the upper chamber to the treatment chamber. You are now ready to filter spirit.
Place a collection bottle such as a 5L demijohn below the ball valve outlet on the flow control chamber and make sure the ball valve tap is in the closed position.
Once filled with spirit wait at least 45 minutes to ensure the carbon in the treatment chamber is saturated.
After 45 minutes open the ball valve and collect 250ml of spirit. Return this spirit to the Upper Chamber as it might have a small degree of carbon residue.
Turn the ball valve on until a flow rate of 1 drip per second.

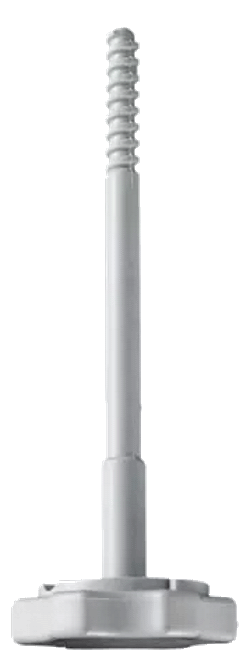

EZ Replacement Spindle
EZ Replacement Bottom Cap

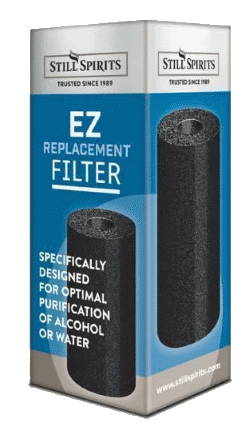

EZ Replacement Filter Cartridge

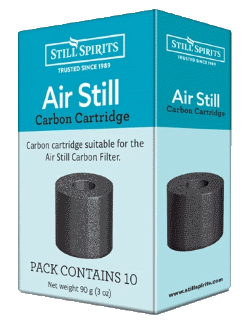

Air Still Carbon Cartridges
Still Spirits Granulated Carbon 500g
Still Spirits Z Carbon Reflux
Still Spirits Finishing Carbon 500g
